Whilst traditional concrete remediation often relies on superficial patching, the hidden electrochemical degradation of reinforced steel costs the UK economy approximately £28 billion annually. It’s frequently observed that standard “patch and repair” cycles fail to address the underlying cause of structural failure, leading to a recurring financial burden and compromised asset integrity. It’s a systemic threat. These processes require a sophisticated electrochemical intervention through cathodic protection.
This technical guide provides a comprehensive overview of how these systems mitigate corrosion by shifting the electrical potential of the steel reinforcement, effectively halting the oxidation process. The engineering insight required to evaluate the performance of Impressed Current Cathodic Protection (ICCP) against galvanic sacrificial anodes is detailed, ensuring that every structural strengthening strategy is aligned with the specific environmental demands of the UK’s infrastructure. We’ll examine the methodologies used to extend the service life of critical assets by up to 50 years, moving beyond temporary fixes toward permanent, evidence-based structural remediation.

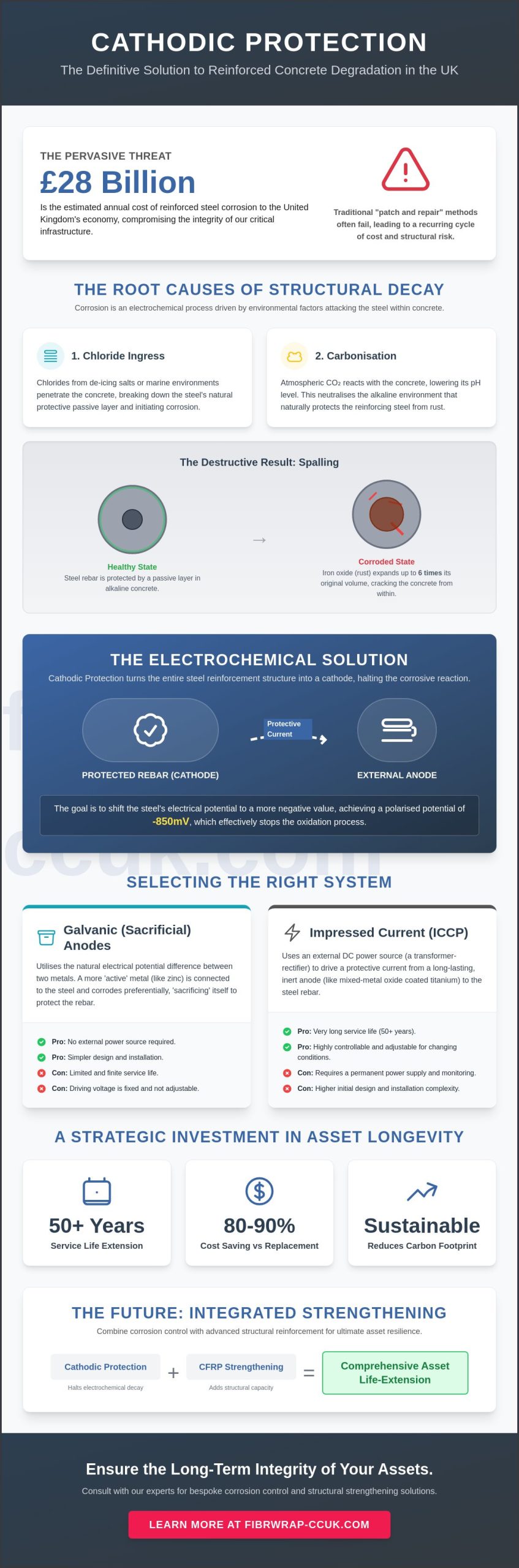

Key Takeaways
- Understand the fundamental electrochemical principles of cathodic protection and its essential role in mitigating the pervasive oxidative deterioration that threatens the United Kingdom’s ageing steel and concrete infrastructure.
- Analyse the technical criteria for selecting between Galvanic sacrificial anodes and Impressed Current (ICCP) technologies, ensuring the chosen system aligns with the specific environmental demands of the asset.
- Gain insights into the rigorous professional design and monitoring protocols required to maintain the long-term integrity and efficacy of bespoke corrosion control measures.
- Discover how the strategic integration of electrochemical techniques with advanced Carbon Fibre Reinforced Polymer (CFRP) facilitates comprehensive structural strengthening and significant asset life-extension.
Understanding Cathodic Protection in the UK Infrastructure Context
Cathodic protection is defined as an electrochemical process used to mitigate the corrosion of metallic surfaces by transferring the anodic reaction to a sacrificial or impressed current source. By effectively making the structural steel or reinforcement bar the cathode within a circuit, the oxidative degradation that compromises structural integrity is halted. This technique remains a cornerstone of modern asset management, particularly for the United Kingdom’s extensive inventory of reinforced concrete bridges and coastal defences. Understanding Cathodic Protection is essential for engineers tasked with managing the 72,000 bridges currently on the UK local authority road network.
Much of Britain’s core infrastructure was constructed during the post-war expansion of the 1960s and 1970s. These assets now face significant durability challenges. The economic argument for cathodic protection is compelling; the cost of structural remediation is typically 10% to 20% of the expenditure required for full demolition and reconstruction. Beyond financial metrics, extending the life of existing structures significantly reduces the carbon footprint associated with new cement production. It’s a strategy that aligns technical engineering requirements with broader sustainability goals through asset life-extension.
The Problem: Why Concrete and Steel Corrode
Corrosion in reinforced concrete is primarily driven by chloride ingress and carbonisation. Chlorides from marine environments or motorway de-icing salts penetrate the concrete matrix, disrupting the protective “passivity” layer around the steel. Carbonisation occurs as atmospheric carbon dioxide reacts with calcium hydroxide, lowering the concrete’s pH. Once the steel corrodes, the resulting iron oxide occupies a volume between 2.5 and 6 times greater than the original metal. This internal pressure causes the concrete to fracture, a process detailed in our guide on spalling meaning.
The Role of Electrolytes in Structural Decay
Corrosion cannot proceed without an electrolyte, which in the United Kingdom is provided by persistent moisture and oxygen ingress. The British climate, characterised by high humidity and frequent rainfall, ensures that porous concrete remains saturated. Traditional surface coatings often fail because they only provide a physical barrier; they don’t address the established electrochemical cells within the contaminated concrete. If chlorides are already present at the rebar level, a simple coating can encapsulate the moisture, potentially accelerating the decay through the “incipient anode” effect. Cathodic protection bypasses this limitation by controlling the electrical potential of the steel directly.
The Science of Corrosion Prevention: How Cathodic Protection Operates
Corrosion in reinforced concrete is fundamentally an electrochemical process where the steel reinforcement acts as an electrode in a massive battery. The deterioration occurs when electrons flow away from a specific site on the metal, known as the anode, leading to the oxidation and subsequent loss of structural section. By implementing cathodic protection, engineers can intervene in this cycle, forcing the entire steel assembly to function as a cathode. This shift in electrical potential stops the oxidation process by providing an external source of electrons, ensuring the rebar remains in a thermodynamically stable state.
The success of this intervention depends on the position of the materials within the Galvanic Series. This hierarchy dictates metal nobility; less noble metals, such as zinc or magnesium, will naturally sacrifice themselves to protect more noble metals like steel. In infrastructure applications, this principle is harnessed by either coupling the steel with these sacrificial anodes or by using an external power source to drive a protective current. For effective mitigation, the electrical potential of the steel rebar must be shifted to a more negative value, typically reaching a polarised potential of -850mV relative to a copper/copper sulphate reference electrode. Ensuring comprehensive electrical continuity across all reinforced elements is a prerequisite, as any isolated steel remains susceptible to accelerated localised decay.
The Electrochemical Cell Explained
Every corrosion cell consists of four essential components: the anode where metal loss occurs, the cathode where protection is received, an electrolyte such as moisture-laden concrete, and a metallic path for electron transfer. Cathodic protection systems introduce a more active site into this circuit to divert the corrosive current away from the primary structure. For reinforced concrete structures undergoing atmospheric exposure, a protective current density typically ranging between 2 and 20 mA/m² of steel surface area is required to achieve sufficient polarisation. This precise application of current neutralises the aggressive ions, such as chlorides, that would otherwise compromise the alkalinity of the concrete environment.
Passive vs Active Protection Strategies
Traditional maintenance often relies on passive barrier methods, including silane treatments or anti-carbonation coatings, which aim to exclude moisture and oxygen. Whilst these are effective for new structures, they offer limited utility once chloride contamination has reached the reinforcement level. Relying solely on patch repairs often triggers the incipient anode effect, where the electrochemical difference between the new repair mortar and the original contaminated concrete accelerates corrosion in the surrounding areas.
To avoid these failures, detailed structural surveys are essential to determine current corrosion rates before selecting a strategy. The transition to active electrochemical intervention allows asset managers to extend the service life of reinforced concrete bridges and marine structures by decades. This methodology prioritises the long-term integrity of the asset over temporary aesthetic fixes. If you require a technical assessment of your structure’s current electrochemical state, you may contact our engineering team for a formal consultation.
Sacrificial Anodes vs Impressed Current: Selecting the Right System
The selection of a cathodic protection methodology depends on the electrolyte’s resistivity, the asset’s geometry, and the intended design life of the structure. While both Galvanic Anode Cathodic Protection (GACP) and Impressed Current Cathodic Protection (ICCP) aim to mitigate corrosion by shifting the electrochemical potential of the steel reinforcement, their operational mechanics differ significantly. Engineers must evaluate whether the passive, self-regulating nature of galvanic systems or the high-output, controllable nature of ICCP aligns better with the specific asset management strategy.
Technical specifications for UK road structures often reference the Highways England design manual for cathodic protection (CD 356) to ensure compliance with national safety standards. This document provides a framework for determining which system provides the necessary current density to achieve polarisation amongst varying environmental conditions.
Galvanic Anode Systems (GACP)
GACP systems utilise the natural potential difference between the steel reinforcement and a more electronegative metal, typically zinc, magnesium, or aluminium. These anodes are sacrificial; they corrode preferentially to protect the host structure. In the context of concrete remediation, discrete zinc anodes are frequently installed within repair patches to prevent the “incipient anode effect,” where new concrete creates a potential difference that accelerates corrosion in adjacent contaminated areas. These systems are often characterised as “install and forget” because they require no external power source or complex monitoring. However, their current output is relatively low and is governed by the consumption rate of the sacrificial material, typically resulting in a finite life-expectancy of 10 to 20 years.
Impressed Current Cathodic Protection (ICCP)
ICCP systems employ transformer rectifiers to convert AC grid power into a constant DC source, which is then delivered through inert anodes. This methodology is superior for large-scale infrastructure, such as major bridge decks or buried pipelines, where high current demands and long-term durability are paramount. Unlike galvanic systems, ICCP allows for precise control; engineers can adjust the voltage to compensate for changes in concrete moisture or chloride concentration. The use of inert anodes, such as Carbon Fibre Reinforced Polymer (CFRP) probes or Mixed Metal Oxide (MMO) coated titanium mesh, ensures the system’s longevity. When integrated with a bespoke design feature, these installations can provide protection for over 50 years. The primary trade-off is the requirement for permanent power and a rigorous maintenance profile, including annual inspections of the transformer units to ensure continuous operation.
- GACP: Best for localised repairs, remote locations, and assets with lower current requirements.
- ICCP: Ideal for high-value infrastructure, large surface areas, and environments with high resistivity.
- Maintenance: GACP requires minimal intervention whilst ICCP demands regular electrical testing and monitoring.
Implementing Cathodic Protection for Concrete Asset Life-Extension
The successful application of cathodic protection within the UK’s reinforced concrete infrastructure necessitates a transition from reactive maintenance to a methodologically rigorous engineering approach. Adherence to BS EN ISO 12696 is mandatory for ensuring that the electrochemical intervention provides the required level of protection to the steel reinforcement. This standard establishes the functional requirements for both Impressed Current Cathodic Protection (ICCP) and galvanic systems; it ensures that asset life-extension is achieved through measurable, empirical data rather than speculative repair cycles. Integrating these systems requires close collaboration with concrete repair contractors during the remediation phase. Patch repairs alone often exacerbate corrosion in adjacent areas via the incipient anode effect. The installation of a CP system mitigates this risk by providing a uniform protective current across the structural element.
Design and Feasibility Considerations
A “one size fits all” approach is fundamentally insufficient for complex structural engineering projects such as motorway bridges or coastal sea defences. The implementation of cathodic protection is not a peripheral addition but a core component of CCUK’s specialist engineering services. During the design phase, engineers must conduct extensive resistivity testing to determine the concrete’s ability to conduct protective current. Half-cell potential surveys are simultaneously utilised to map the areas of active corrosion. These data points allow for the development of a bespoke anode configuration that addresses the specific geometry and environmental exposure of the asset. It’s essential that the design accounts for steel continuity and the presence of any stray currents that could compromise system performance.
Monitoring, Maintenance, and Performance
The long-term efficacy of a CP system depends entirely on consistent data collection and professional oversight. Reference electrodes, typically silver/silver chloride or manganese dioxide, are permanently embedded within the structure to measure the electrochemical potential of the steel. These sensors provide the primary evidence that the protection criteria defined in BS EN ISO 12696 are being met. Modern ICCP systems offer asset managers remote monitoring capabilities; this allows for real-time adjustments to current output without the need for immediate site attendance. To maintain system integrity, the following protocols are standard:
- Annual Performance Assessments: A comprehensive review of all monitoring data to ensure the system remains within its design parameters.
- Visual Inspections: Physical checks of the power supply units and cabling to prevent mechanical failure or vandalism.
- System Re-calibration: Adjusting the current density to account for changes in environmental humidity or temperature that affect concrete resistivity.
Asset managers shouldn’t view CP as a “set and forget” solution. It’s a dynamic engineering system that requires a structured maintenance regime. When managed correctly, it provides a predictable and cost-effective method for extending the service life of critical infrastructure by several decades. For a detailed consultation on your structure’s requirements, you can contact our specialist engineering team.
The Future of Structural Integrity: Combining Cathodic Protection with CFRP
The remediation of reinforced concrete infrastructure requires a multi-faceted approach that addresses both chemical degradation and mechanical deficiency. Whilst cathodic protection serves as the primary mechanism for arresting the electrochemical process of rebar oxidation, it doesn’t inherently restore the structural capacity lost to previous section loss. This is where the integration of Carbon Fibre Reinforced Polymer (CFRP) becomes essential. By combining these two technologies, engineers can achieve a holistic repair that addresses the root cause of decay whilst simultaneously reinstating or enhancing the asset’s load-bearing capabilities. This dual-action strategy is now considered the gold standard for achieving a 50-plus year life-extension for critical UK assets like highway bridges and marine structures.
Strengthening Corroded Structures with Tyfo® Fibrwrap®
The application of Tyfo® Fibrwrap® involves a precise sequence of surface preparation, resin saturation, and composite bonding. These high-strength, lightweight materials are applied to the exterior of rehabilitated concrete elements to provide confinement and flexural or shear enhancement. Beyond basic load restoration, these systems offer significant secondary benefits, including blast mitigation and seismic retrofitting, which are increasingly vital for urban infrastructure resilience. It’s critical to recognise that restoring structural integrity with composites is fundamentally useless if the underlying corrosion of the steel reinforcement isn’t halted through cathodic protection. Without electrochemical stabilisation, the continued expansion of corroding steel will eventually compromise the bond between the concrete and the CFRP overlay.
Conclusion: Proactive Management of the Built Environment
Proactive management of the built environment necessitates a shift from reactive patch-and-repair cycles to comprehensive life-cycle strategies. Early intervention using cathodic protection prevents the catastrophic loss of section that leads to weight restrictions or total asset failure. Asset managers must adopt a life-cycle cost perspective, acknowledging that the initial investment in combined CP and CFRP systems significantly reduces long-term maintenance expenditure and avoids the massive carbon footprint of demolition and reconstruction. This methodology ensures that essential infrastructure remains safe and operational for decades beyond its original design life. For a detailed assessment of your infrastructure, contact our specialist engineering team for a bespoke cathodic protection and strengthening consultation.
Securing the Longevity of Critical UK Infrastructure
The preservation of the United Kingdom’s critical infrastructure requires a shift from reactive maintenance to proactive, science-led remediation. Implementing cathodic protection ensures the electrochemical mitigation of corrosion, extending the operational life of concrete assets whilst maintaining their essential structural integrity. By integrating advanced materials like the Tyfo® Fibrwrap® system with traditional electrochemical protection, engineers can achieve a superior level of reinforcement that addresses both chemical degradation and the complex load-bearing requirements of modern infrastructure.
As the exclusive UK licensee for the Tyfo® system, Fibrwrap Construction UK brings over a decade of specialist engineering expertise to the structural remediation sector. Our team delivers a comprehensive design, supply, and installation service that adheres to the most stringent industry standards. Securing the longevity of our bridges, tunnels, and marine structures is a vital economic and safety priority. It’s a commitment to engineering excellence that ensures our built environment remains resilient for decades to come.
Consult with our specialist engineers regarding cathodic protection and structural strengthening
Frequently Asked Questions
What is the primary difference between galvanic and impressed current cathodic protection?
Galvanic systems utilise sacrificial anodes with a more electronegative potential than the steel reinforcement, whereas impressed current cathodic protection (ICCP) employs an external power source to drive a protective current. Whilst galvanic anodes are simpler to install and require no external power, ICCP provides a greater degree of control and is capable of protecting structures in higher resistivity environments or those with significant chloride contamination.
How long does a cathodic protection system typically last on a concrete bridge?
The design life of an ICCP system typically ranges from 25 to 50 years, provided the transformer-rectifier and anodes are maintained according to BS EN ISO 12696:2022 standards. Galvanic systems generally offer a shorter functional lifespan, often requiring anode replacement every 10 to 20 years depending on the environmental exposure and the rate of consumption of the sacrificial material. These timelines ensure long-term structural remediation without the need for frequent full-scale interventions.
Can cathodic protection be installed on an existing structure that is already showing signs of corrosion?
Cathodic protection is specifically designed for the structural remediation of existing assets where chloride ingress or carbonation has already initiated the corrosion process. It’s an effective method for halting active corrosion in reinforced concrete, even when visual signs like spalling or delamination are present. Once the existing damaged concrete is repaired, the system is integrated to prevent further electrochemical degradation of the internal steel reinforcement.
Is cathodic protection expensive compared to traditional concrete repair methods?
Initial capital expenditure for an ICCP system is often 20% to 40% higher than traditional patch repairs, but it’s significantly more cost-effective over a 25-year lifecycle. Traditional repairs frequently fail within 5 to 10 years due to the incipient anode effect in surrounding areas. By contrast, cathodic protection addresses the entire structure, preventing the need for repetitive and disruptive repair cycles that increase the total cost of ownership.
Does cathodic protection require constant monitoring and maintenance?
ICCP systems require regular monitoring to ensure the protective current remains within specified limits, though modern installations utilise remote telemetry for automated data collection. Performance data is typically reviewed on a monthly or quarterly basis to confirm the system meets the 100mV decay criteria. Galvanic systems require less frequent technical intervention, but they still necessitate periodic visual inspections and electrochemical testing to verify the anodes haven’t reached the end of their service life.
What happens if a cathodic protection system fails or is turned off?
If the system is deactivated, the electrochemical passivity of the steel reinforcement is eventually lost, allowing corrosion to resume at its original or even an accelerated rate. Corrosion current measurements in chloride-contaminated structures show that degradation restarts as soon as the protective polarisation dissipates. Continuous operation is essential; therefore, any system failure must be addressed within a defined timeframe to maintain the integrity of the structural strengthening measures.
Can cathodic protection be used on historic or listed masonry structures?
Cathodic protection is a preferred solution for Grade I and Grade II listed buildings where embedded iron or steel cramps are causing masonry fracturing. It’s a non-destructive alternative to the wholesale removal of historic fabric, which is often required in traditional restoration. By installing discrete anodes into mortar joints, the rust-heave is arrested, preserving the original stone or brickwork whilst meeting the stringent requirements of heritage conservation bodies.
Is cathodic protection environmentally friendly?
The application of this technology is a sustainable engineering choice because it facilitates asset life-extension and avoids the carbon-intensive process of demolition and reconstruction. Extending the life of a concrete bridge by 50 years significantly reduces the lifetime embodied carbon compared to building a replacement structure. It’s a key component of circular economy principles in the UK construction sector, prioritising the preservation of existing infrastructure over the consumption of new raw materials.
