A steel girder can gain structural capacity without the added dead load associated with conventional steel reinforcement. CFRP bridge strengthening uses lightweight, high-strength composite materials that are corrosion-resistant; CFRP composites are described as weighing one fifth as much as steel while having comparable strength. For steel bridge girders, bonded laminate strips offer a focused way to investigate this strengthening approach.
Material properties matter, but they do not determine a suitable intervention on their own. The design must also account for the girder’s condition, load demands, bond performance and the details needed to transfer forces safely into the structure.
This article explains why CFRP is used in bridge strengthening, how engineers approach reinforcement design and what research on laminate strips for steel beams shows. It also covers durability and the factors that shape a practical strengthening scheme, helping you assess where CFRP may fit in extending a steel bridge’s service life.
Key Takeaways
- Compare plates, wraps and rods against the strengthening need; each form transfers load differently and suits different structural details.
- Account for anchorage, lap length and material cutting loss when developing a reinforcement layout, as these influence the amount and placement of CFRP.
- Use the steel-girder laminate research as context: it evaluated five experimental composite beams and approximately 100 finite element models.
- Assess exposure to humidity, rainfall, radiation and chemicals when considering long-term performance, alongside the condition of the substrate and bond.
- Understand how specialist CFRP strengthening and concrete repair can support a project focused on extending a bridge’s service life.
Carbon fibre reinforced polymer properties?
Carbon fibre reinforced polymer (CFRP) combines carbon fibres with a polymer matrix. On bridges, plates, rods and fabric can reinforce existing structural members. CFRP composites are described as weighing one fifth as much as steel while offering comparable strength. This low mass can help limit additional dead load during strengthening. The polymer also protects the fibres from chemicals, water, extreme heat and extreme cold.
Plates provide continuous reinforcement, while rods offer a bar-shaped alternative. Their role depends on the member, the forces being resisted and how the reinforcement can be anchored. For example, a plate bonded along a beam can supplement its tensile resistance. A rod may suit a structural detail that calls for bar-shaped reinforcement. Neither form removes the need to assess the existing member and its load path.
Plate profile and dimensions are design variables, not universal selections. Width, thickness, length and position affect how forces enter the strengthened member and how the plate fits available surfaces. The design must also allow for anchorage and lap length where required. Cutting losses at sides and corners matter when estimating cloth area. Geometry should therefore be established from the member’s condition and strengthening demands.
Prestressed CFRP plate systems introduce an initial tensile force into the plate before it is bonded or anchored to the member. This affects how the reinforcement engages under load compared with an unstressed bonded plate. The design must account for the prestressing force, anchorage and force transfer into the structure. These details influence both the plate arrangement and local stresses around its ends.
Carbon fibre plate bonding is also used in new construction where cut-outs reduce reinforced concrete performance. For an existing bridge, the bonding interface is central: forces must transfer from the substrate into the plate without local separation. The proposed layout should account for surface condition, plate termination and anchorage. Bonded reinforcement is a structural system, not a plate acting independently of the member.
Compared with bonded steel plates, CFRP offers much lower material weight for comparable strength and resists corrosion. Steel plates may still suit designs where their properties, connections and installation constraints align with the requirements. Other methods, including wrapping or rod reinforcement, address different geometries and force paths. Selection depends on the member, load demand, substrate and detailing, not material strength alone.
For steel bridge girders, laminate strips are a relevant plate-based option, but concrete plate-bonding details cannot simply be transferred to steel. The substrate and force-transfer arrangement differ, so the bond and anchorage must be designed for the girder. CFRP’s high tensile strength and low weight can be advantageous, but performance depends on the composite system and connection design. A structural assessment should establish which reinforcement form suits the actual member.
Design and calculation of CFRP reinforcement
Design starts with the bridge’s structural demands and the condition of its existing members. For an older bridge, calculations are generally based on a CFRP standard. The engineer identifies the deficiency, such as insufficient bending resistance, then determines the reinforcement required and its position. The analysis must consider how forces pass from the existing member into the carbon fibre reinforced polymer and its anchorage.
One calculation approach converts allowable CFRP stress into an equivalent amount of steel, then applies traditional reinforced-concrete stress analysis. This offers a familiar analytical framework, but the equivalent steel value does not mean CFRP behaves like steel. The design still needs to account for the composite’s properties and the interface that transfers load. For a girder, the relevant demand, member geometry and reinforcement arrangement all influence the result.
Several quantities inform the layout. The area of carbon-fibre cloth is denoted by Acf, while Ag describes the area required to resist insufficient bending moments. Anchorage length and the area required for lap length must also be included. These requirements affect the reinforcement’s usable area and position. Allow for cutting losses at sides and corners, too, so the material quantity reflects the actual layout rather than theoretical surface coverage.
For UK bridge work, applicable standards, project approvals and asset-owner requirements depend on the bridge and proposed intervention. AASHTO-based rehabilitation calculations may inform an engineering approach, but using them alone does not establish UK acceptance. The design basis should identify the requirements being applied and explain how the assessment, strengthening calculations and approval process align. Key considerations include the bridge’s use, condition, structural form and ownership.
FRP design software can support calculations by modelling the member, reinforcement arrangement and relevant loading assumptions. It is an analysis tool, not a substitute for engineering judgement. Inputs must represent the structure and chosen CFRP system; outputs should be reviewed against the load path, anchorage and material behaviour. A useful calculation record makes the assumptions and resulting design checks traceable.

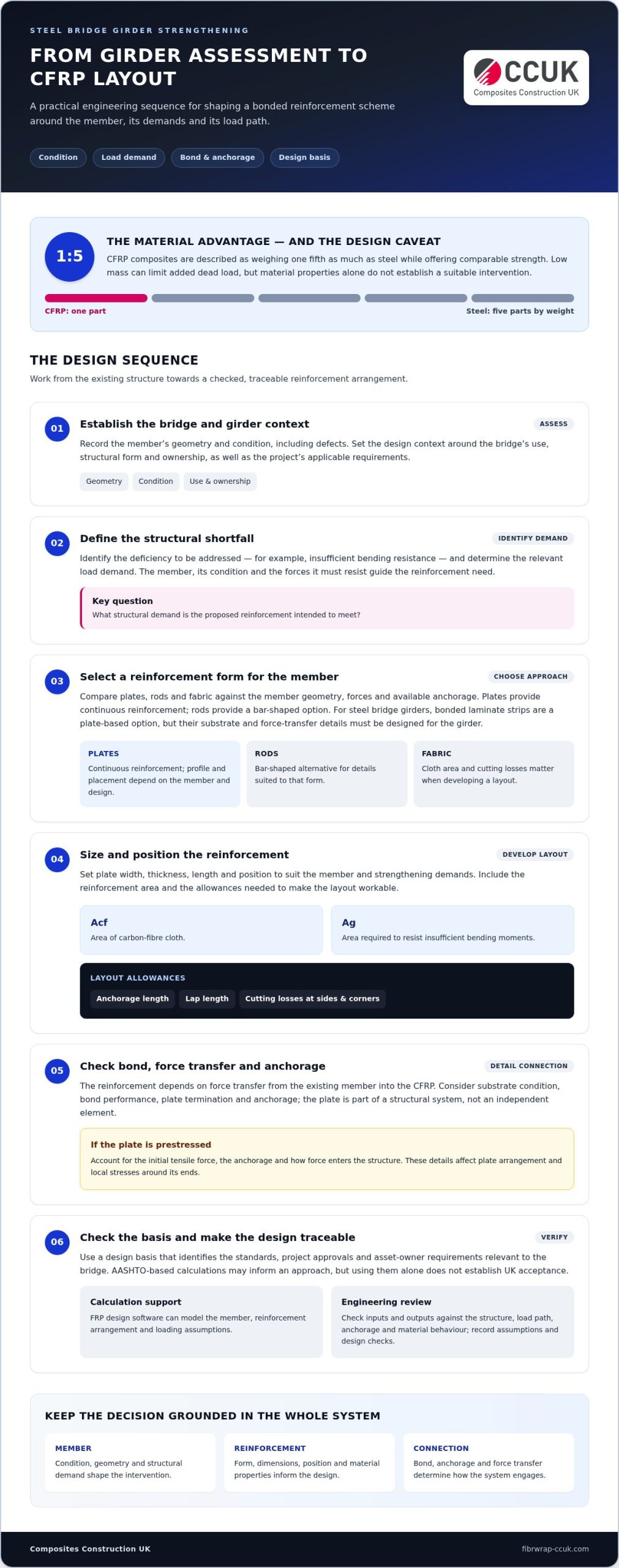

Inspection, design and installation follow a connected sequence:
- Inspect the bridge member and record its geometry, condition, defects and existing reinforcement.
- Assess structural demand, identify the deficiency and calculate the required CFRP area, anchorage and lap details.
- Prepare the substrate and install the designed reinforcement, following the specified surface and bonding requirements.
- Review the completed work against the design, recording placement and any relevant installation observations.
This sequence connects site evidence to the final detail. If inspection identifies concrete damage, the design must address how the substrate affects load transfer before bonded reinforcement is installed. Calculations should also show how termination and anchorage resist force transfer. For a steel girder, the laminate-to-steel connection needs details suited to that substrate, rather than assumptions taken directly from reinforced-concrete design.
CFRP laminate strips for steel bridge girder strengthening
For a steel bridge girder, a bonded CFRP laminate strip can add reinforcement along a selected part of the member. Its position depends on the force demand and the structural deficiency being addressed. For example, a strip placed along a tension region must transfer load through its bond with the steel. The strengthening design therefore treats the girder, adhesive interface and laminate as a connected system.
Strip layout depends on girder geometry and surface access. The design considers the available bonding area, strip length and width, and how the ends transfer force. A tapered or terminated detail can affect local stresses, so the transition into the unstrengthened girder needs attention. On a bridge, stiffeners, connections and surface irregularities can also determine where a continuous strip can be installed.
CFRP offers low added mass and corrosion resistance. These properties can make laminate strips relevant where additional steel would add weight or increase corrosion exposure. However, a strip does not strengthen every part of a girder equally. Its position must match the identified demand, and the bond must remain effective under design loading. The material’s tensile capacity alone cannot establish the strengthened member’s capacity.
Steel and concrete are different bonding substrates. A detail intended for a reinforced-concrete beam cannot simply be copied onto a steel girder. Surface preparation, adhesive selection, bond length and end detailing must suit the steel substrate and chosen composite system. The design should also consider how the strip interacts with existing welds, connections and local changes in section. These checks help define a buildable reinforcement arrangement.
Research has examined CFRP laminate strips as a method for strengthening steel beams. One study tested five experimental composite beams and developed approximately 100 finite element models to evaluate CFRP strengthening of steel beams. These figures show the use of both physical testing and numerical analysis. They do not, by themselves, establish a universal strip layout or performance value for every bridge girder.
For an individual bridge, analysis should relate test evidence to the girder’s structural form, loading and condition. A finite element model can explore how different reinforcement arrangements affect calculated behaviour, while testing provides experimental evidence for the system examined. Neither removes the need to assess the actual substrate and bond detail. Design decisions should connect model assumptions to the real girder and proposed installation.
Installation planning is part of strengthening design. The selected strip route must be accessible, and the steel surface must be prepared to support the specified bond. The sequence should account for obstacles such as cross-girders or attachments, as well as inspection of the completed bond. These practical checks align the analytical design with the bridge’s physical constraints.
Durability and long-term performance
CFRP can offer resistance to environmental exposure and corrosion. Long-term performance still depends on the complete strengthening system, including its bond, substrate and detailing.
Long-Term Performance
The polymer matrix protects carbon fibres from chemicals and water, while CFRP is also described as resistant to extreme heat and cold. These properties support its use in exposed bridge environments, where moisture, weather and pollutants can affect structural materials. CFRP’s fatigue resistance is another relevant characteristic: repeated loading can challenge a bridge member and its strengthening system over time.
Assess the whole system, not just the laminate. For a bonded plate on a steel girder, the interface transfers force between the materials. For a wrapped or fabric system, continuity and termination details affect how the reinforcement works. Consider surface condition, adhesive bond and local details alongside environmental exposure.
Long-term review should focus on changes that could affect force transfer. An inspection, for example, can look for lifting at laminate edges, visible damage or changes in the surrounding steel or concrete. Where concrete has deteriorated, its condition matters because bonded reinforcement relies on a sound substrate. Recording observations over successive inspections helps identify developing changes.
Risks and Failure Modes
The main risks are loss of bond, debonding at the laminate edge, composite damage, and failure of the substrate or anchorage. These modes can interrupt force transfer, so design and inspection must consider the interface, termination and supporting material, not only CFRP tensile strength.
Bond failure can develop if surface preparation is inadequate, the substrate has deteriorated or the adhesive interface is compromised. On a steel girder, corrosion or surface irregularities can affect the bonding area. On concrete, weak or damaged material can separate beneath the laminate. In either case, local detachment changes how load transfers into the strengthened member.
Pay particular attention to edge and anchorage details. A poorly resolved termination can concentrate stresses, while insufficient anchorage can prevent the reinforcement from making its intended contribution. At joints, stiffeners or changes in section, access and geometry may complicate installation. Reflect these locations in both design drawings and site inspection records.
Impact or other physical damage can affect the composite or its bond, even where fibres resist corrosion. A practical inspection should examine exposed laminate surfaces, edges and terminations, then assess any nearby substrate damage. If concrete repair is needed, restoring the supporting surface is part of the structural solution, rather than treating the CFRP layer as an isolated component.
Durability depends on material resistance and sound execution. Clear records of substrate preparation, bonding and completed detailing give future inspections a useful reference. For each bridge, assess observed changes against the designed load path and the condition of adjacent structural components.
What is CFRP bridge strengthening and how does it work?
CFRP bridge strengthening adds carbon fibre reinforced polymer to an existing bridge member to increase its structural strength. The composite combines carbon fibres with a polymer matrix, then transfers load through a designed bond or anchorage. Possible forms include plates, laminate strips, rods and fabric wraps. For a steel girder, a bonded laminate strip can reinforce a selected region without replacing the member.
The mechanism depends on force transfer. Under load, the girder and CFRP act together when effectively connected by the bond. A strip placed along a tension region carries part of the tensile demand, while its adhesive interface transfers that force into the steel. On a concrete beam, a bonded plate can supplement reinforcement; a wrap can strengthen a different member geometry. Each detail must suit the substrate and structural demand.
Design begins with the bridge’s condition and required capacity. The engineer identifies the deficient member, assesses its load path and selects a reinforcement form. The layout then accounts for where forces enter and leave the composite, including anchorage and termination details. For a steel girder, this means assessing the steel surface and bond arrangement. For a concrete member, the bonding surface’s condition also affects force transfer.
Installation follows the designed system, not a generic sequence. The working steps typically include:
- Inspect the member and record its geometry, condition and visible deterioration.
- Prepare the reinforcement layout, including bond areas, terminations and anchorage.
- Prepare the substrate and install the specified CFRP component using the designed bonding arrangement.
- Review the completed work against the drawings and record relevant observations.
These steps connect assessment to the installed strengthening. For example, a steel girder with a local tensile deficiency may suit a laminate strip, while fabric reinforcement may suit a different member configuration. CFRP composites are described as weighing one fifth as much as steel while offering comparable strength. Their low added mass can help where increasing dead load is a design concern, but capacity, bonding and detailing still need to be checked.
The method is not interchangeable with every bridge repair. CFRP adds reinforcement; by itself, it does not restore deteriorated concrete or correct unrelated defects. Where substrate damage affects the bond, concrete repair may form part of the structural work. The decision should follow a condition assessment and identify the specific deficiency being addressed.
For a project-specific understanding of how reinforcement details are developed, review CFRP strengthening design features.
Composites Construction UK: Carbon Fibre Reinforced Polymer (CFRP) Strengthening
Composites Construction UK provides Carbon Fibre Reinforced Polymer (CFRP) Strengthening for infrastructure projects where an assessment identifies a need to increase structural capacity or extend an asset’s service life. Its work includes feasibility studies, bespoke design solutions and professional installation, linking the selected reinforcement system to the structure’s condition and demands.
For a bridge girder, this support is relevant when an assessment indicates that CFRP could address a defined strengthening requirement. If concrete deterioration affects the substrate, Concrete Repair may also form part of the wider structural work. Tyfo® Fibrwrap® Systems are another option for suitable strengthening applications, with selection shaped by the project’s structural requirements.
To discuss a bridge strengthening project, contact Composites Construction UK.
Plan the next step for your bridge
The next decision is how to turn a strengthening concept into a detail suited to the bridge’s condition, structural demands and future maintenance needs. A project-specific assessment can establish whether CFRP bridge strengthening is appropriate for the identified member and how the work should fit the wider asset strategy.
Composites Construction UK provides Carbon Fibre Reinforced Polymer (CFRP) Strengthening, Tyfo® Fibrwrap® Systems and Blast Mitigation Systems. These capabilities support structural strengthening for different project requirements, with the intervention tailored to the structure rather than selected as a generic solution.
For asset owners and engineering teams considering a bridge intervention, the practical next step is to discuss the structure, its observed condition and the performance objective. This conversation can help define the technical scope and identify the information needed to develop a considered design.
Contact Composites Construction UK to discuss your bridge strengthening requirements and take the next step towards a durable, engineered solution.
Frequently Asked Questions
What is CFRP composites material and why is it used?
CFRP is a composite of carbon fibres held in a polymer matrix. The fibres provide reinforcement, while the matrix binds them and protects them from environmental exposure. On a bridge, the material can be applied as plates, strips, rods or fabric, depending on the member and structural requirement. Its low weight and corrosion resistance can be useful where conventional steel reinforcement would increase dead load or introduce another corrosion-prone component.
Which CFRP strengthening methods are used for UK bridges?
Methods include bonded CFRP plates or laminate strips, carbon-fibre fabric wrapping and rod reinforcement. A laminate strip can be considered for a steel girder, while fabric wrapping may suit a member that needs reinforcement around its surface. CFRP plates are also used on concrete elements. The appropriate form depends on the bridge member, access, substrate and force-transfer detail, rather than one method being suitable for every structure.
What factors determine the design and amount of CFRP reinforcement needed?
The required reinforcement depends on the member’s condition, structural demand, geometry, substrate and intended load path. Design also accounts for bond area, anchorage and any lap length, as these details affect the effective layout. For cloth reinforcement, the area is denoted Acf; Ag describes the area required to resist insufficient bending moments. Site records of girder dimensions, defects and existing details help ensure the design model reflects the actual bridge.
How durable is CFRP bridge strengthening, and what maintenance is required?
CFRP resists humidity, rainfall, radiation and chemical exposure, but the bond and surrounding substrate remain important to performance. Maintenance should include visual checks of laminate edges, terminations and exposed surfaces, as well as adjoining steel or concrete. Impact damage or deterioration near a bonded area, for example, can affect load transfer. Record inspection findings and assess them against the strengthening design and bridge maintenance plan.
Which UK projects have used CFRP to strengthen bridges, and what results were achieved?
Composites Construction UK’s project listings include Capital Interchange, dated October 14 2025, and Wolo House, dated November 18 2024. Those project names alone do not establish that either involved a bridge strengthened with CFRP, or identify measured structural results. A project should only be cited as a CFRP bridge case study when its application and documented outcome are clear. The article’s steel-beam research offers experimental and modelling context, not a named UK bridge result.
